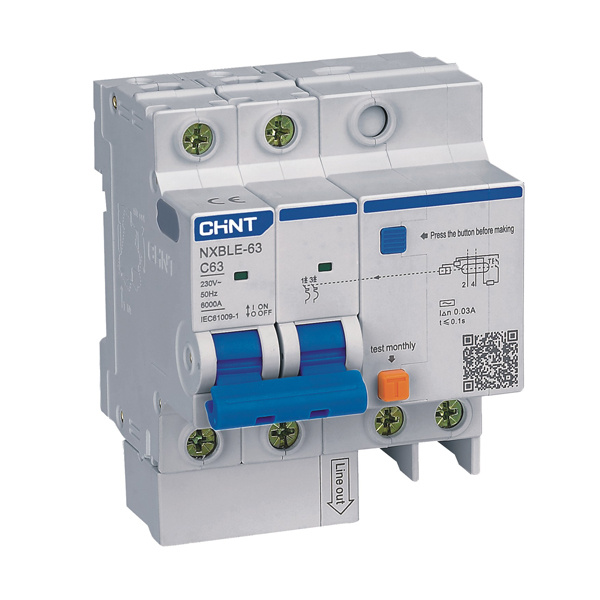

NXBLE-63 Residual Current Operated Circuit Breaker

Product description:1. Compliant standards IEC61009-1 2. Compliant certification CE 3. Major function Overload protection short circuit protection isolation residual current operation 4. Technical parameters Rated current: 6A 10A 16A 20A 25A 32A 40A

1. Compliant standards

IEC61009-1


2. Compliant certification

CE


3. Major function

Overload protection, short circuit protection, isolation, residual current operation


4. Technical parameters

Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A;

Rated residual operating current: 0.03A, 0.05A, 0.075A, 0.1A, 0.3A;

Rated voltage: 240V ~ (1P+N, 2P), 415V ~ (3P, 3P+N, 4P);

Frequency: 50Hz;

Electromagnetic release type: B, C, D;

Number of poles: 1P+N, 2P, 3P, 3P+N, 4P;

Mechanical life: 20000 cycles;

Electrical life: 10000 cycles;

Rated short-circuit breaking capacity(Icu): 6000A;

Short-circuit breaking capacity(Ics): 6000A;

Rated impulse withstand voltage(Uimp): 4kV;


Catalog

NXBLE-63 Residual Current Operated Circuit Breaker (RCBO) Sample.pdf
